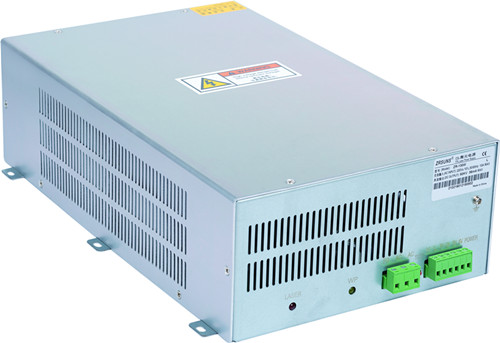

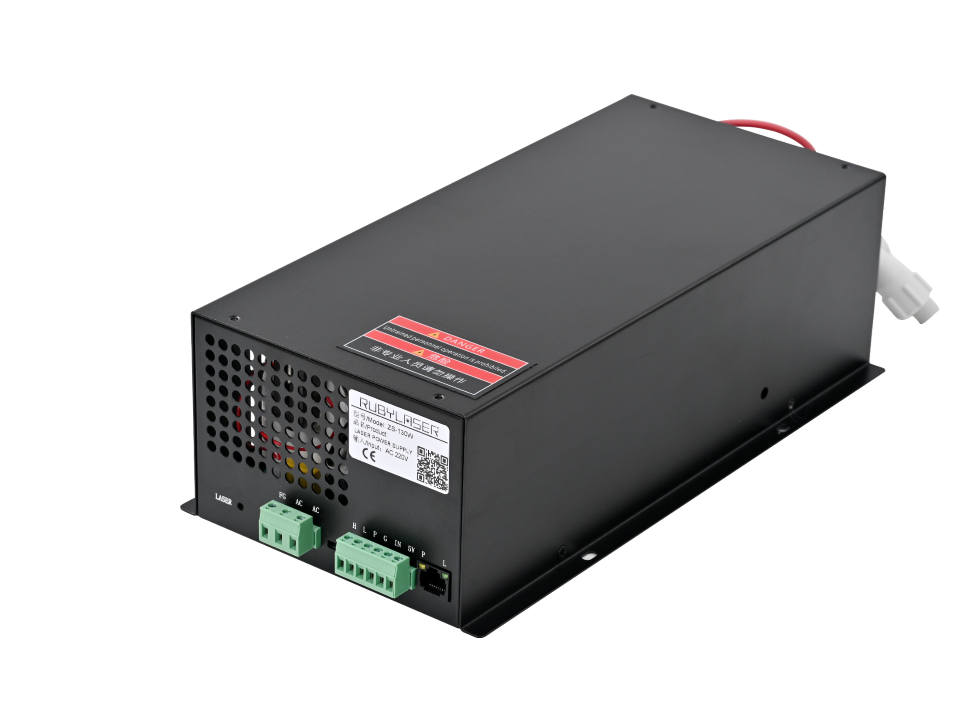

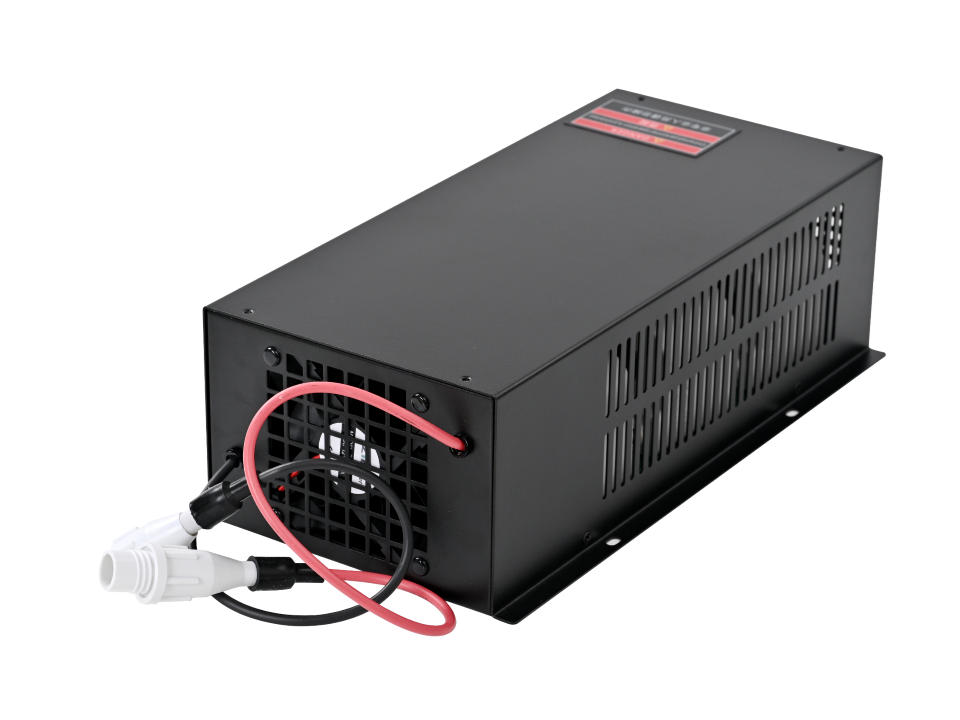

ZS-130WX CO2 laser power supply

1.This 130W laser power supply’s circuit design is reasonable, It’s a high-grade laser engraving machine or cutting machine’s best choice. At the same time,it significantly extend the life time of 130-150W laser tube.

2.The 130W CO2 power supply has stable performance::Each power supply has been much more rigorous testing procedures and under full load high temperature (52~55 degrees celsius) 24 hours of aging. This feature ensures the power supply has stability.

3. The 130W CO2 power supply’s output voltage abd current are large (AC220V input, the maximum output current up to 40mA, voltage up to DC50KV)I. it improves the laser power: (The average laser power is 130W and peak laser power is 150W). Thus this laser power supply can drive most brand 1600mm,1650mm or 1850mm 130W OR 150W CO2 laser tube made by different factories.

Order online

ZS-130WX CO2 laser power supply

Feature：

1. Control is simple: This 130W CO2 power supplies use high or low level control, the use of TTL-level control of the laser can start and stop. At the same time it increases the protection switch, testing is through the external water and ventilation on this high voltage CO2 power supplies.

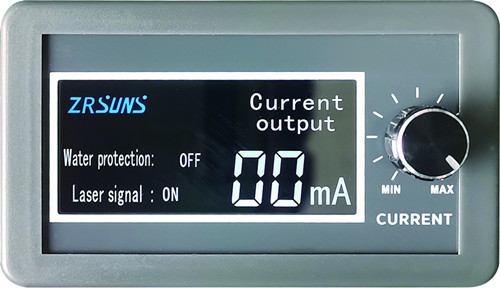

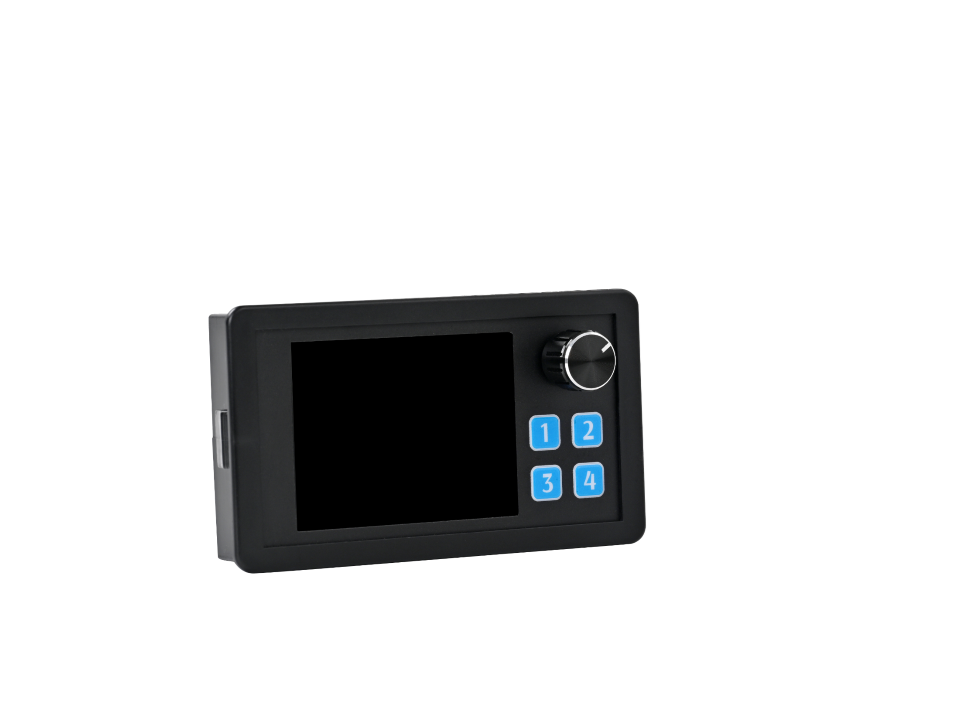

2.This laser tube's CO2 power supplies have a built-in network cable interface, which can be used to connect with external LCD module through the network cable. The external LCD module can display the working status, output current and common fault codes. This is helpful for operators to understand the working status of 130W CO2 power supplies and quickly solve problems. The output current can be adjusted through the rotary potentiometer of the liquid crystal module.

3. Good compatibility: The high voltage CO2 power supplies can drive EFR,Yongli,SPT,Weiju and other brand 1.6 or 1.65 meter length 130W CO2 laser tube and it also have a strong adaptability and fast response, cutting advantages of good effect.

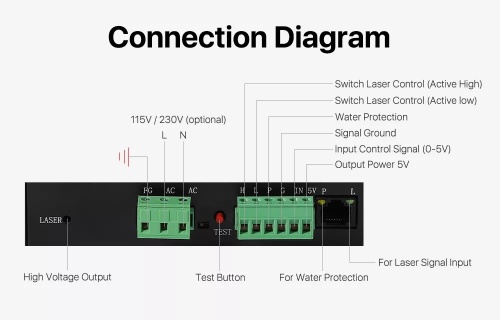

4. This laser tube's CO2 power supplies adopt G/P/L/G/IN/5V as control signal output interface.The high voltage CO2 power supplies adopts aluminum upper cover and base, and galvanized steel shell.

5. Protection function: This laser tube's CO2 power supplies have open circuit protection: Under the condition of good protective earth, the high voltage CO2 power supplies can work in open-circuit for a short time, which could avoid the damage to the 130W CO2 power supplies

6. The laser tube's CO2 power supplies has stable working performance: Each high voltage CO2 power supplies has been much more rigorous testing procedures, under full load high temperature (52~55 degrees Celsius) 24 hours of aging, to ensure the stability of each 130W CO2 power supplies.

7.Laser power control is simple on this laser tube's CO2 power supplies, 0-5V analog signal control the laser power can be used, It can also use the PWM (pulse width modulation) signal to control output laser power.

8. It uses the latest silicon carbide to replaces traditional transistors. The silicom carbide has high efficiency, low heat generation and low failure rate characteristics.Which make this 130W laser power supplies more suitable for long-time uninterrupted works in hot environment.

9.The silicon carbide reduces circuit's quantity, which reduces failure rate and keep consistency in output parameters. Enable laser cutting power supply have better engraving and cutting effects

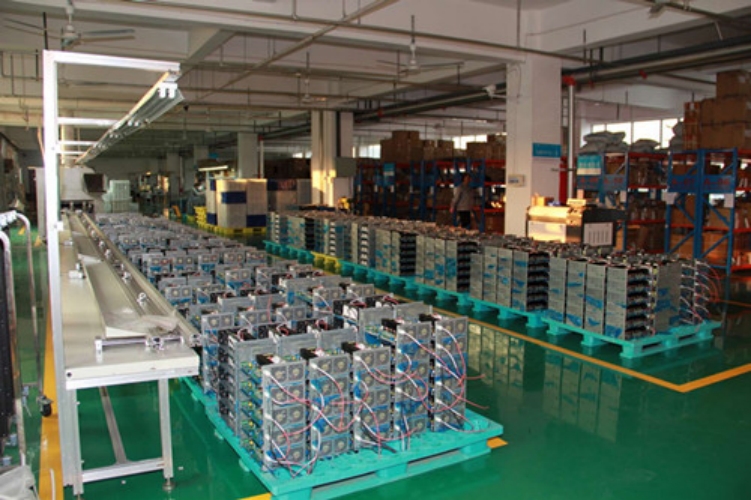

10. It adopts patch assembly process, which is fully automated and standardized It uses HD cameras to detect circuit boards, assembled components and soldering effects. The two methods reduces the possibility of human error causing unqualified CO2 laser power source

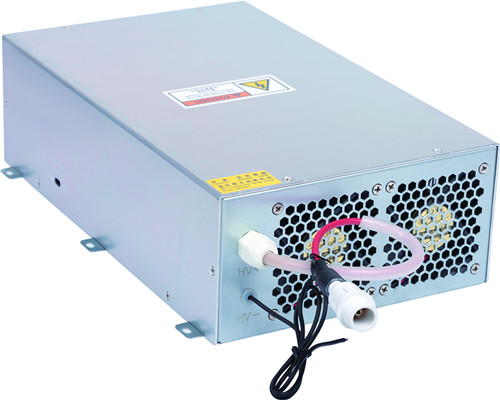

11. It adopts silicone tube to wrap output HV cable to prevent electric sparks from splashing and protect operators and equipment, which allowing CO2 laser tube's power supply work normally in humid environments

12. 90-270V Voltage stabilizer is optional.

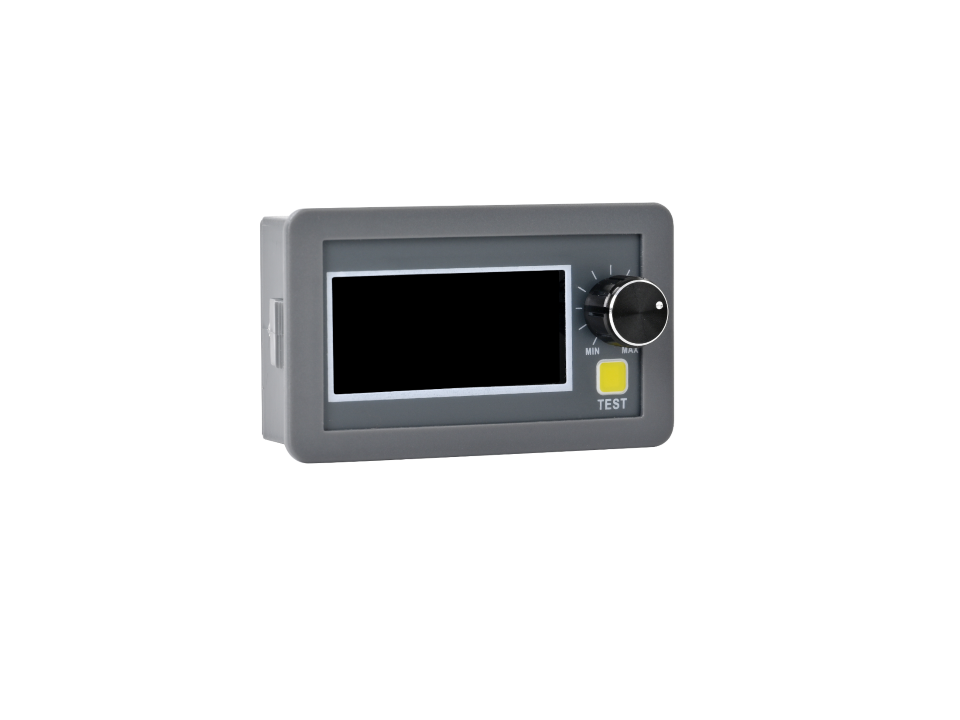

13. This 130W CO2 laser power supply can support LCD display screen which can show power supply's working status,failture code and output current. Also output current can be adjusted at the screen. Single channel LCD display screen is default. 4/8 channels LCD display screen is optional.

Specification：

Input	Input voltage	AC220V±10% (AC110V specified while order)
	AC frequency	47~440HZ
	Maximum input power	970W
	Maximum input current	4.3A
Output	Maximum output voltage	40KV
Output	Maximum output current	36mA (depending on the laser tubes of different manufacturers)
Efficiency		More than 90% (Full load)
Response speed		Not more than 1ms
Control lnterace		TTL multilevel switching control,effective level can be high and low selection (see control wining diagram)
Insulation	lnput-output	AC 1500V 1 minutes not more than 10mA
	lnput-shell	AC 1500V 1 minutes not more than10mA
	Output-shell	Connection
Open Circuit Protection		Can be short circuit (requires a good grounding shell,while avoiding the positive electrode and the shell between the arc)
Environmental Requested	Working temperature	-10℃~50℃
	Storage of temperature	-20℃~75℃
	Relative Humidity	Maximum 85%RH (non-condensing)
	Altitude	100,000 feet of work 200,000 feet of storage,dose not work
Cooling methods		Forced air cooling (fan cooling)
Dimensions (LxWxH)		305mmx142mmx95mm
