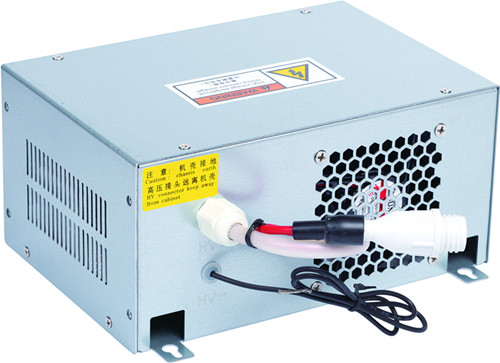

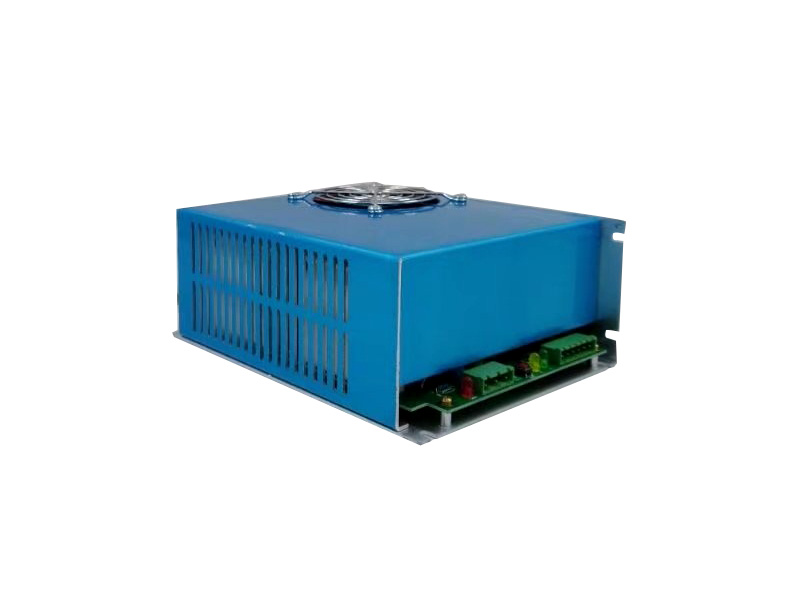

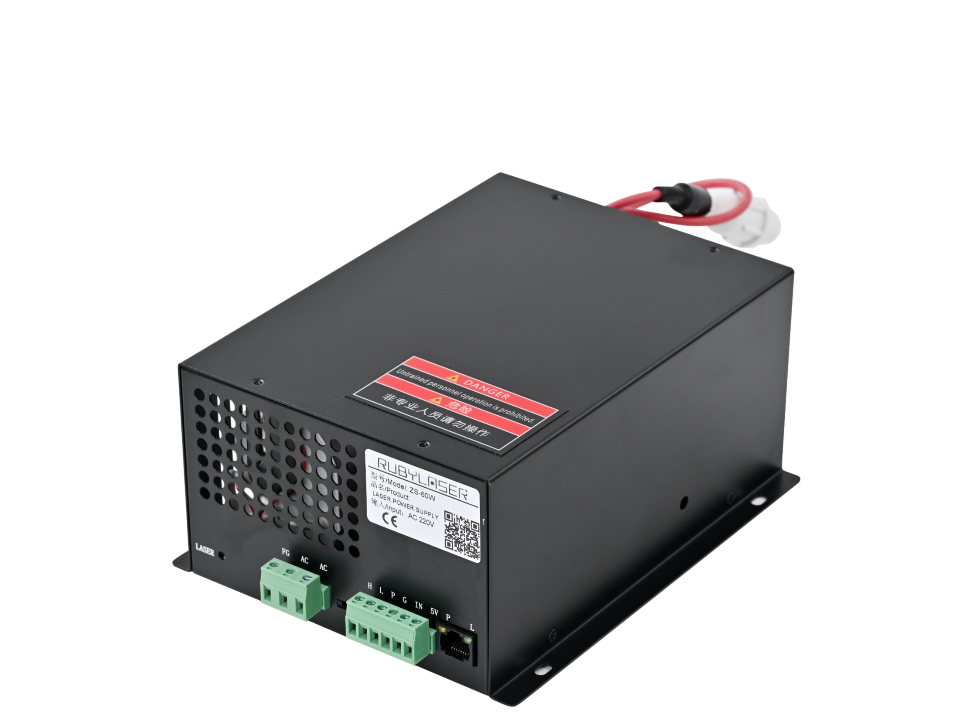

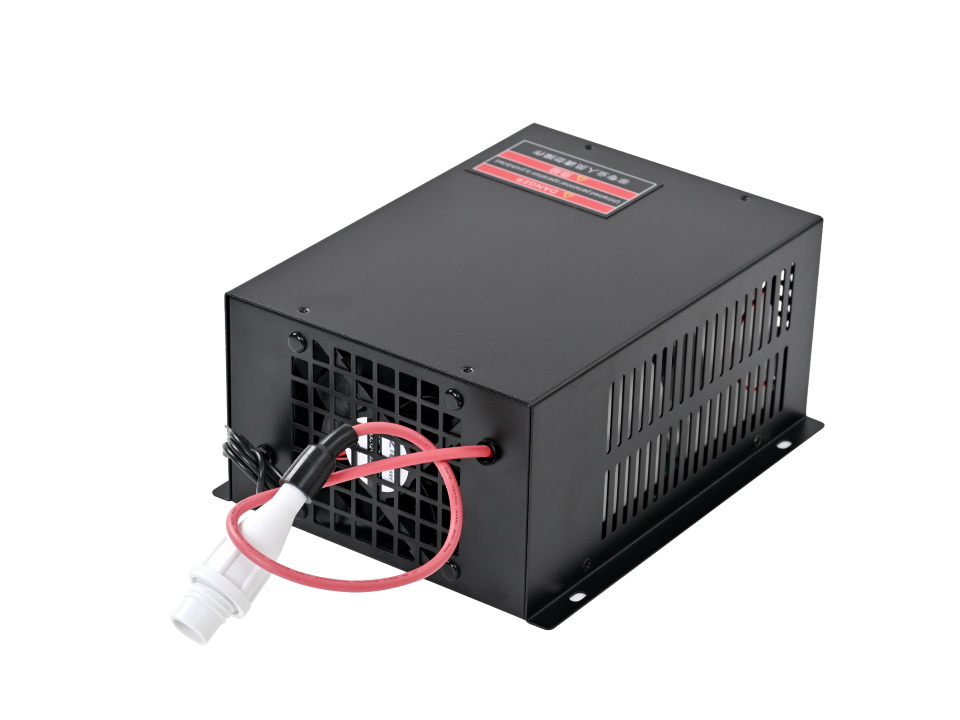

ZS-60WG CO2 laser power supply

1. The 220V input laser power supplys control is easy and simple. It adopts high or low level control, the TTL-level control makes laser beams output start and stop quickly.

2. This 220V inpuit laser power supplys main advantage is high frequency,quick response speed, less volume, less weight, easy operation with complete protecting function.

3. This.60W laser power supply uses imported USA,Japan,German,France and Taiwans high quality components for major parts to avoid the error in future and strengthen lifetime. The carbon dioxide laser power supply can be widely used to drive 1200mm or 1250mm 60W CO2 laser tube.


Order online

ZS-60WG CO2 laser power supply

Feature:

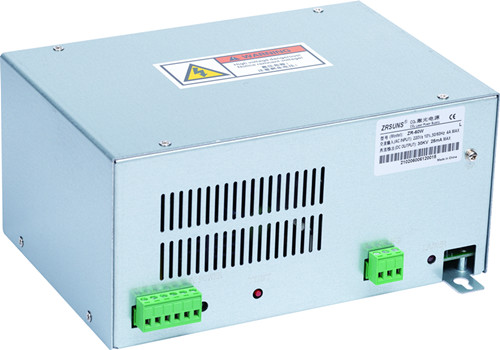

1.This ZS-60WG CO2 laser power supply uses ordinary H/L/P/G/IN/5V ports to accept laser power's control signal and galvanized steel case.

2.The HV laser power supply has the protection switch. Laser power control is simple, it can use 0 - 5V analog signal or PWM (pulse width modulation) signal to adjust and control laser powers output.

3. This.60W laser power supply uses imported USA,Japan,German,France and Taiwans high quality components for major parts to avoid the error in future and strengthen lifetime. The carbon dioxide laser power supply can be widely used to drive 1200mm or 1250mm 60W CO2 laser tube made by different factories.

4. This 220V inpuit laser power supply's main advantage is high frequency,quick response speed, less volume, less weight, easy operation with complete protecting function.

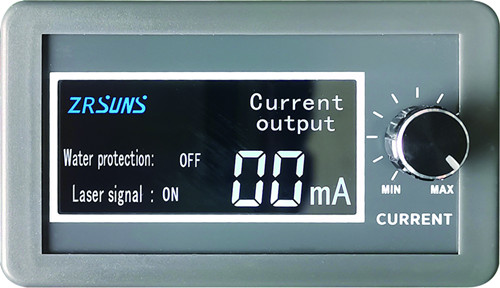

5. The carbon dioxide laser power supply has LCD display module: (optional) .Because of it, it do not need to open the outside case. Operator can simply find ordinary code faults and output current at LCD display screen of 220V input laser power supply and easy remove the trouble. Also the output current can be adjusted by potentiometer on the LCD module.

6.The 60W laser power supply has excellent protection function. The carbon dioxide laser power supply has open circuit protection, which make the 220V input laser power supply short-term work in the open circuit status which avoid the laser tube burst due to the damage caused by HV laser power supply. In this way it greatly enhancing the 60W laser power supplys service time.

7. The 220V input laser power supply's control is easy and simple. It adopts high or low level control, the TTL-level control makes laser beams output start and stop quickly.

8.The HV laser power supply has stable laser output. Each 60W laser power supply have been much more rigorous testing procedures, under full load high temperature (52~55 degrees Celsius) 24 hours of aging to ensure high stability of each carbon dioxide laser power supply.

9. It uses the latest silicon carbide to replaces traditional transistors. The silicom carbide has high efficiency, low heat generation and low failure rate characteristics.Which make  laser power supply more suitable for long-time uninterrupted works in hot environment.
10.The silicon carbide reduces circuit's quantity, which reduces failure rate and keep consistency in output parameters. Enable  laser power supply have better engraving and cutting effects

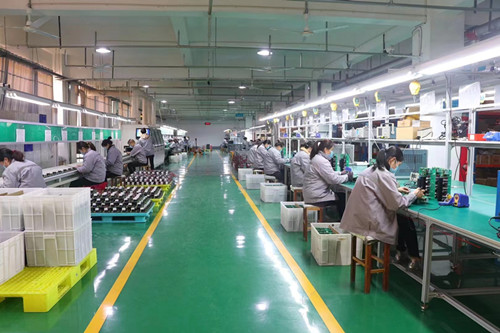

11. It adopts patch assembly process, which is fully automated and standardized It uses HD cameras to detect circuit boards, assembled components and soldering effects. The two methods reduces the possibility of human error causing unqualified  laser power supply.
12. It adopts silicone tube to wrap output HV cable  to prevent electric sparks from splashing and protect operators and equipment, which allowing  laser power supply work normally in humid environments
13. 90-270V Voltage stabilizer is optional.

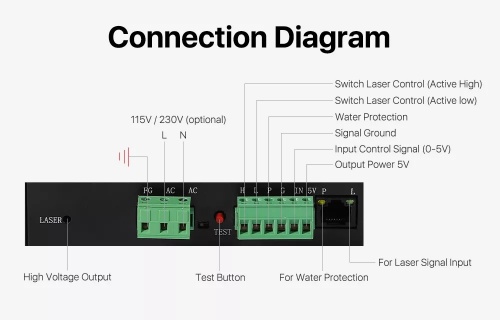

 00 wire connection.jpg

Specification

lnput

Input voltage

AC220V±10% (AC110V specified while order)

AC frequency

47~440HZ

Maximum input power

490W

Maximum input current

2.2A

Output

Maximum output voltage

25KV

Maximum output current

28mA

(depending on the laser tubes of different manufacturers)

Efficiency

More than 90% (Full load)

Response speed

Not more than 1ms

Control lnterace

TTL multilevel switching control,effective level can be high and low selection (see control wining diagram)

Insulation

lnput-output

AC 1500V 1 minutes not more than 10mA

lnput-shell

AC 1500V 1 minutes not more than10mA

Output-shell

Connection

Open Circuit Protection

Can be short circuit (requires a good grounding shell,while avoiding the positive electrode and the shell between the arc)

Environmental Requested

Working temperature

-10~50

Storage of temperature

-20~75

Relative Humidity

Maximum 85%RH (non-condensing)

Altitude

100,000 feet of work

200,000 feet of storage,dose not work

Cooling methods

Forced air cooling (fan cooling)

Dimensions (LxWxH)

210mmx145mmx102mm
