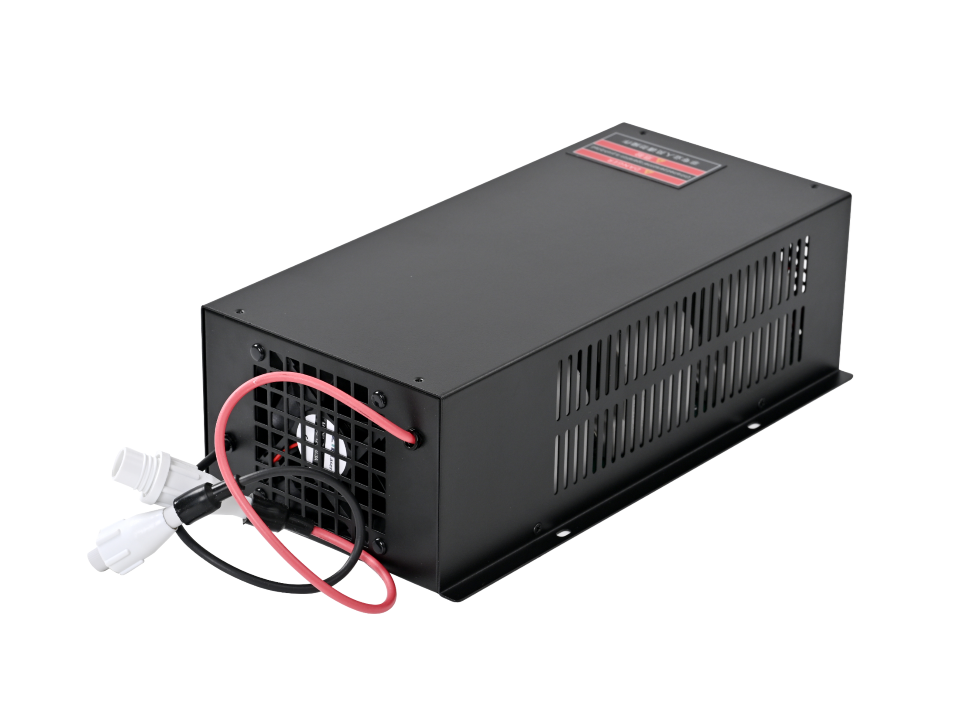

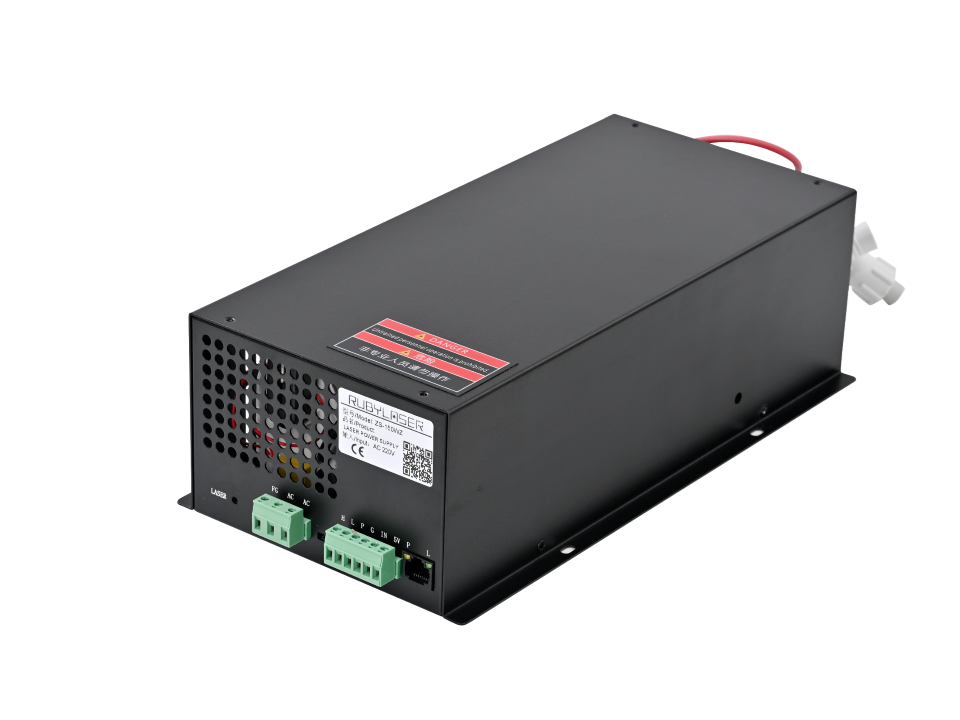

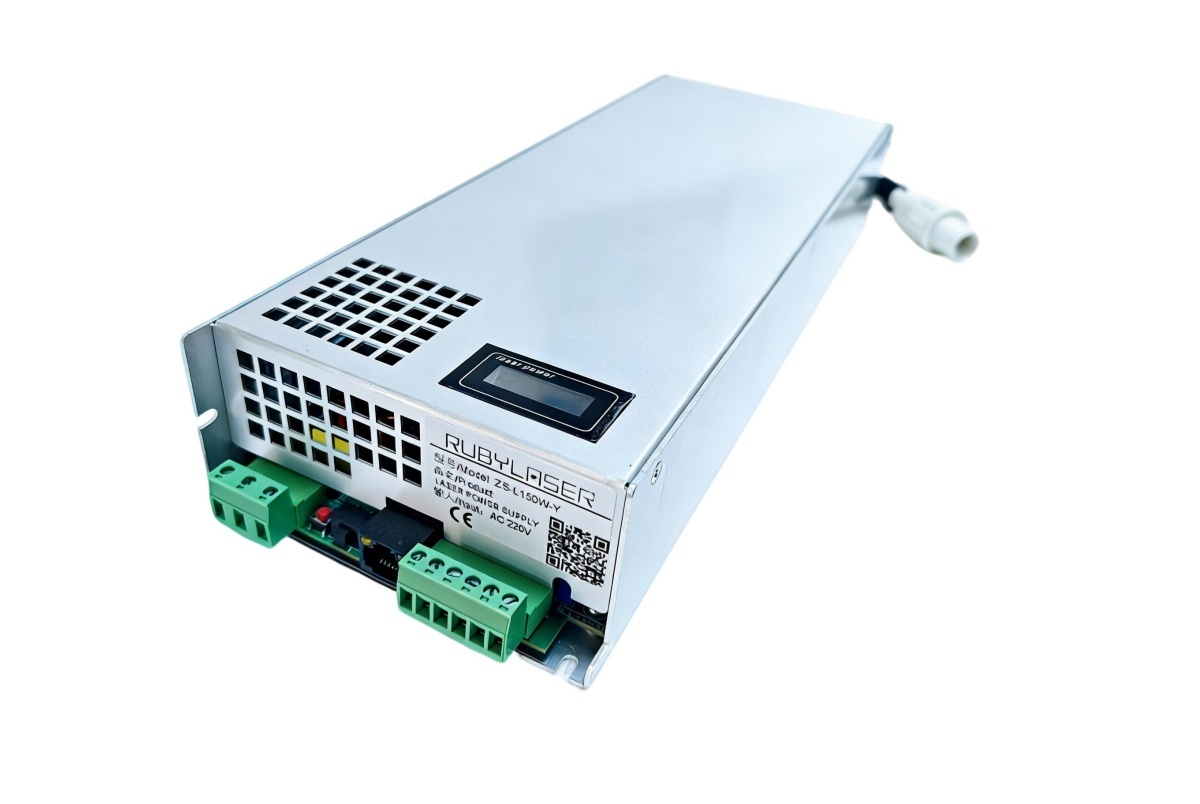

ZS-150WZ CO2 laser power supply

Feature:

1.This ZS-150WZ CO2 laser power supply is specifically developed for high-power foldable CO2 laser tubes Several 150WZ CO2 laser power supplies can be connected together for CO2 laser die cutting machine. Through isolation, they can form a combination of 300/450/600/750W to drive corresponding high-power CO2 laser tubes.

2.The 0 to 5V analog signals or PWM signals can be selected for controlling output power.

3.This high voltage laser power supply has good grounding protection: It can provide very safe protection for operators

4.With open circuit protection, the 150WZ laser power supply can work in an open-circuit state for a short time, which can avoid the damage on laser power supply caused by the bursting of the laser tube.

5.This 150WZ laser power supply has high efficiency and quick response with its zero current half bridge soft switching circuit. Thus it is easy to cooperate with most brand large power folded co2 laser tube.

6.The 150W laser psu box adopts high quality fans for cooling. It use two Taiwan’s bearing which make the fas run for very long time.

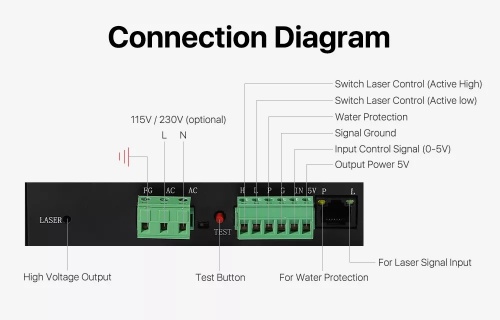

7.This 150WZ power supply selects H/L/P/G/IN/5V green terminal board to accept laser control signal and it has aluminum upper cover and base, galvanized sheet shell..

8.This high voltage laser power supply terminal control is simple and adapted to high and low level signals. TTL level can be used to control the start and stop of laser power. At the same time, an abnormal protection switch was added to detect if the external water is ventilated or not.

9 It uses the latest silicon carbide to replaces traditional transistors. The silicom carbide has high efficiency, low heat generation and low failure rate characteristics.Which make 150WZ laser power supply more suitable for long-time uninterrupted works in hot environment.

Specification：
