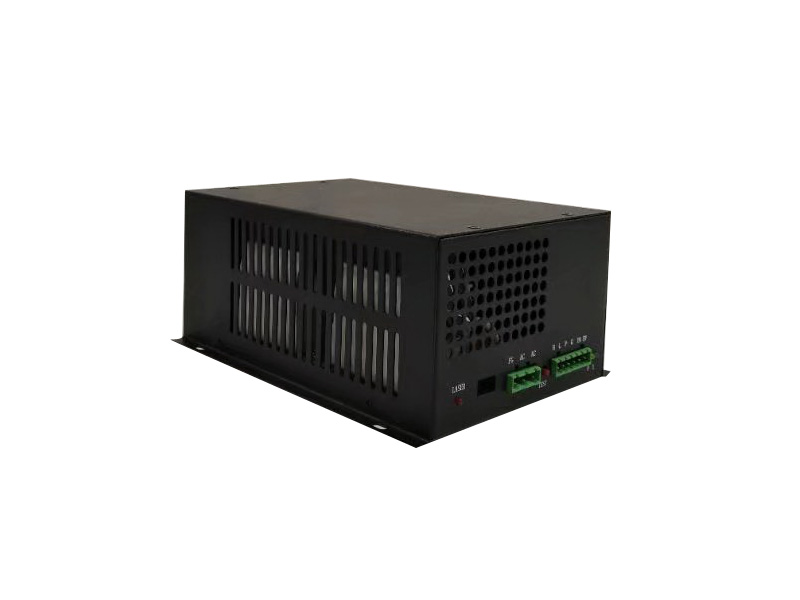

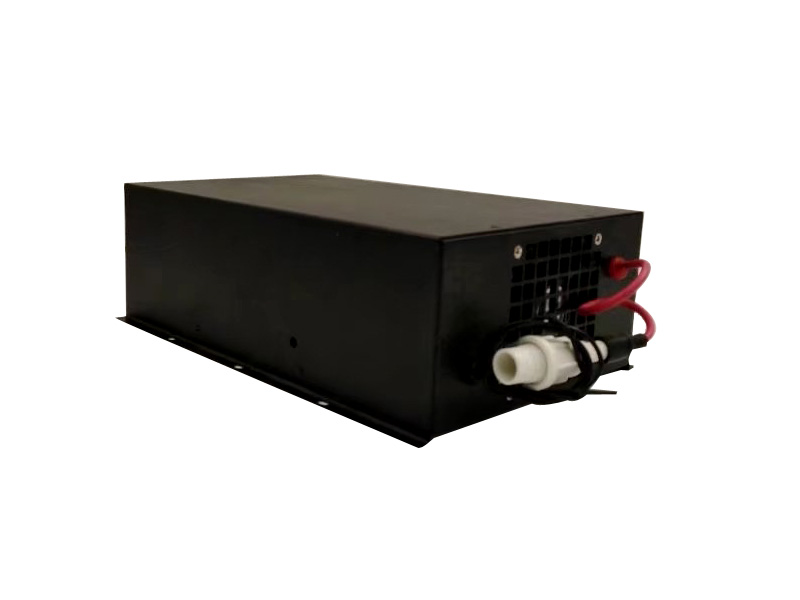

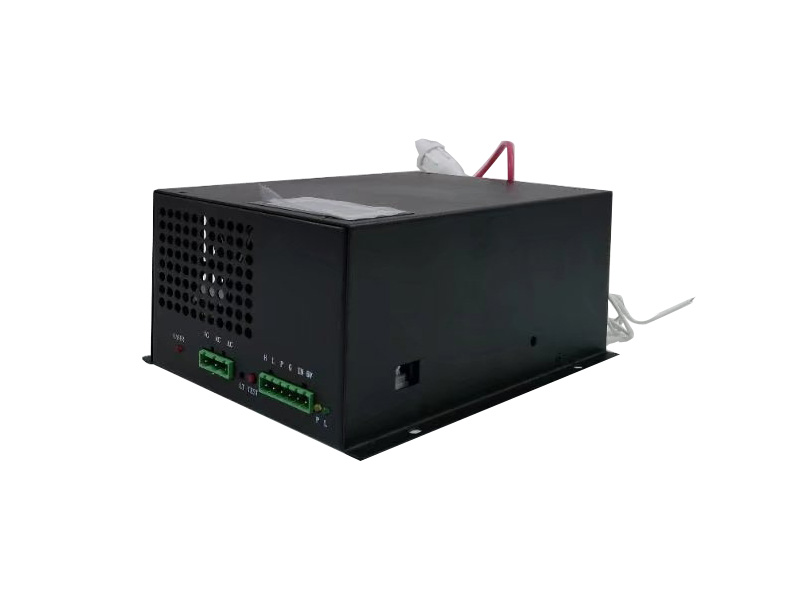

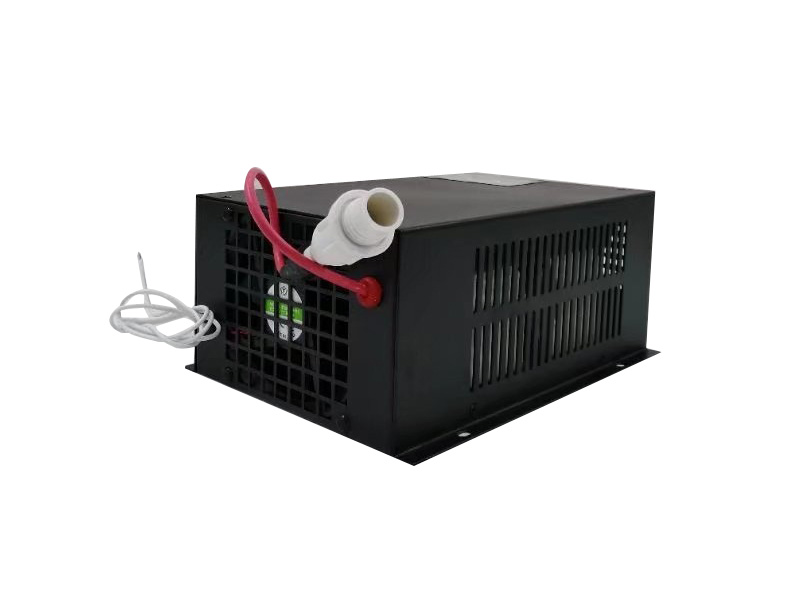

ZS-300W CO2 laser power supply

1. It uses the latest silicon carbide to replace traditional triode. Silicon carbide has the characteristics of high efficiency, low heat generation, and low failure rate. It makes the laser power supply more suitable for long-term uninterrupted operation in high temperature environments without any malfunctions.

2. Silicon carbide reduces the number of circuits, lowers the failure rate, and maintains consistency in output parameters. Improve the high-power cutting effect of laser power supply

3. It adopts surface mount assembly technology, fully automated and standardized production lines, and uses high-definition cameras to detect circuit boards, assembly components, and soldering effects. These two methods reduce the possibility of human error causing the laser power supply to be unqualified

Order online

ZS-300W CO2 laser power supply

Feature:

1. It has excellent protection function: the 300W laser power supply has open circuit protection, which allows the high-voltage laser power supply works in an open circuit state for a short time, thereby avoiding damage to the CO2 laser tube.

2. The laser powersupply's control is simple. And the 300W laser power supply can use 0-5V analog signals or PWM signals for laser power control.

3.300W laser power supply uses ordinary H/L/P/G/IN/5V ports to receive control signals.

4. The 300W laser power supply has stable performance: each laser power supply has undergone multiple testing procedures and 24-hour aging at high temperature (52-55 degrees Celsius) under full load, ensuring the stability of each CO2 laser power supply.

5. The 300W laser power supply has good compatibility: This high-voltage laser power supply can drive foldedCO2 300W laser tubes such as RECI, SLW, Yongli, SPT, etc In addition to this function, the high-voltage laser power supply also has strong functional adaptability, fast response speed, and good cutting effect.

6. The 300W laser power supply is easy to control: it uses high or low level for control. Using TTL level control, it can achieve fast start and stop. At the same time, the high-voltage laser power supply is equipped with a protective switch, which is tested through external water and ventilation

7. It uses the latest silicon carbide to replace traditional transistors. Silicon carbide has high efficiency, low heat generation, and low failure rate. This makes the laser power supply more suitable for long-time uninterrupted running in high temperature environments without any malfunctions.

8. Silicon carbide reduces circuits's quantity, which reduce failure rate and keep consistency in output parameters. It improves high-power cutting effect of CO2 laser cutting machine

9. It adopts surface mount assembly technology, fully automated and standardized production lines.Besides,,it also uses high-definition cameras to detect circuit boards, assembly components, and soldering effects. These three methods reduce the unqualified power supply's possibility caused by human error.

10. It uses silicone tubing to wrap the output high-voltage cable, which prevents electric sparks from splashing. It can protects operators and equipment and enable the laser power supply works normally in humid environments

11.90-270V voltage regulator is optional.

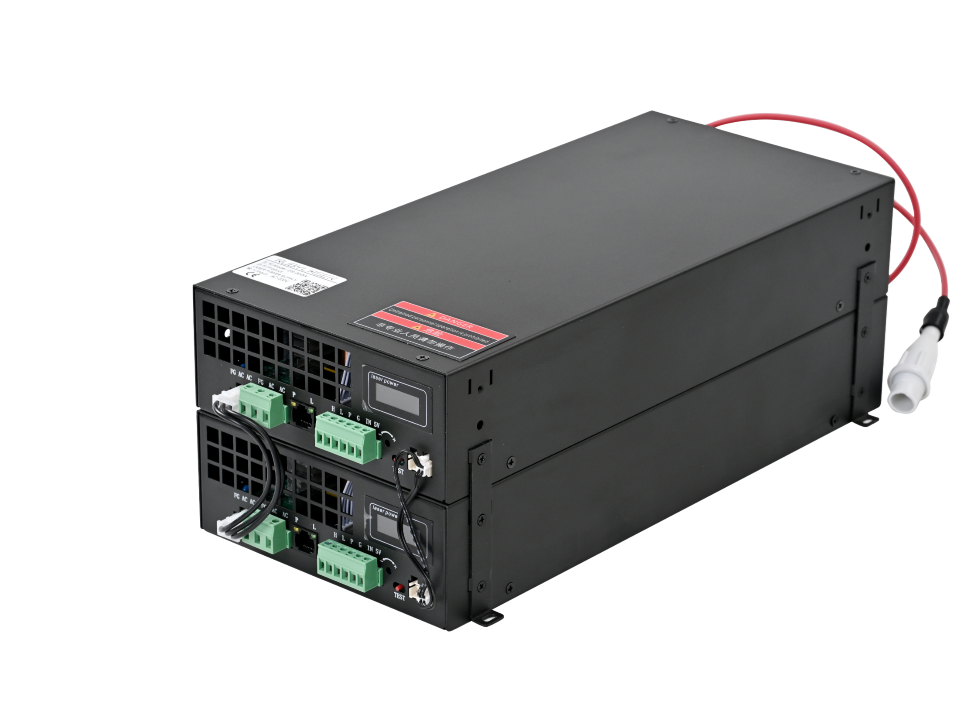

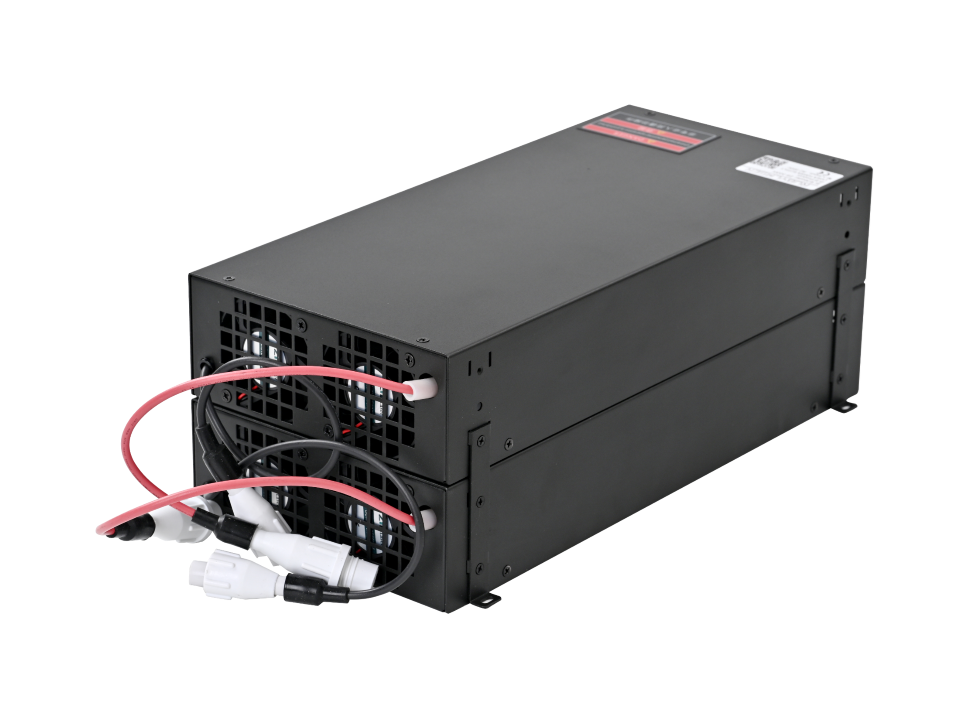

12.The 450/600/750W CO2 laser power supply can be customized on client's requirement.

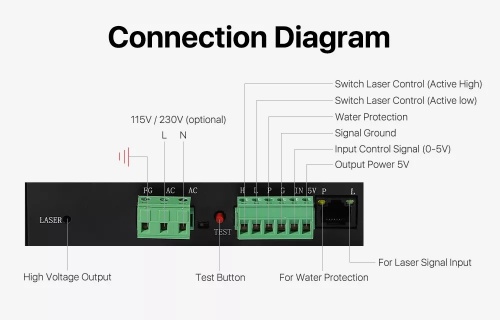

00 wire connection.jpg

Specification：

lnput	Input voltage			AC90-250V±10%
	AC frequency			47~440HZ
	Maximum input power			1000W
	Maximum input current			10A
Output	Maximum output voltage			50KV
	Maximum output current			45mA (depending on the laser tubes of different manufacturers)
Efficiency				More than 90% (Full load)
Response speed				Not more than 1ms
Control lnterace				TTL multilevel switching control,effective level can be high and low selection (see control wining diagram)
Insulation		lnput-output		AC 1500V 1 minutes not more than 10mA
		lnput-shell		AC 1500V 1 minutes not more than10mA
		Output-shell		Connection
Open Circuit Protection				Can be short circuit (requires a good grounding shell,while avoiding the positive electrode and the shell between the arc)
Environmental Requested			Working temperature	-10℃~50℃
			Storage of temperature	-20℃~75℃
			Relative Humidity	Maximum 85%RH (non-condensing)
			Altitude	100,000 feet of work 200,000 feet of storage,dose not work
Cooling methods				Forced air cooling (fan cooling)
Dimensions (LxWxH)				356mmx165mmx133mm
