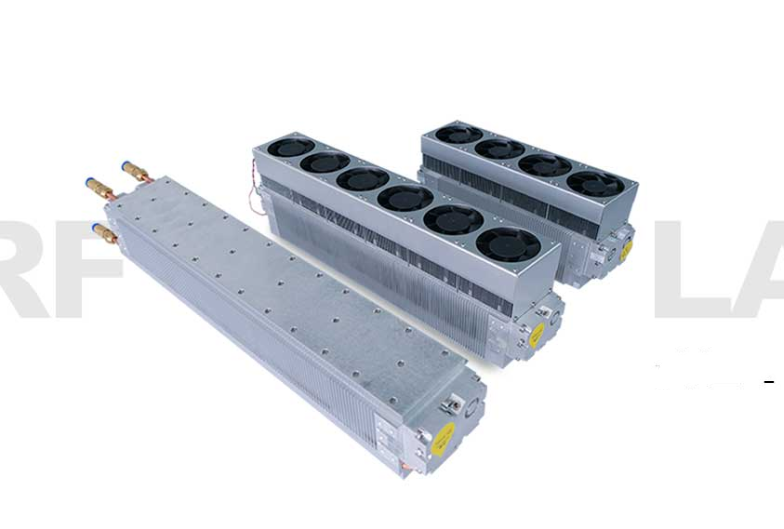

RLT-50 SERIES CO2 RF LASER
The RLT-50 series CO2 RF laser is highly suitable for industrial continuous operation; Good output beam quality and high output power; Fully enclosed metalized design, small size, maintenance free, long lifespan, stable and reliable operation.
Stable power and excellent beam quality; Integrated design, easy to integrate; High photoelectric conversion efficiency, fast response. 、
Cardboard marking; Plastic wristband carving; PE film cutting; Laser wire stripping
The cooling methods for the RLT-50 series CO2 RF laser are available in air/water cooling options for customers to choose from. It has been widely used in laser coding, laser beauty, electronic components, ceramic marking, beverage packaging marking, paper box packaging marking, acrylic carving, and wood carving.
RLT-50 SERIES CO2 RF LASER
1. Brief Introduction:
The RLT-50 series CO2 RF laser is highly suitable for industrial continuous operation; Good output beam quality and high output power; Fully enclosed metalized design, small size, maintenance free, long lifespan, stable and reliable operation.
Stable power and excellent beam quality; Integrated design, easy to integrate; High photoelectric conversion efficiency, fast response. 、
2. Application industry:
Cardboard marking; Plastic wristband carving; PE film cutting; Laser wire stripping
The cooling methods for the RLT-50 series CO2 RF laser are available in air/water cooling options for customers to choose from. It has been widely used in laser coding, laser beauty, electronic components, ceramic marking, beverage packaging marking, paper box packaging marking, acrylic carving, and wood carving.
3. Technical specification:
RLT-50 series-Air-cooling/Water-cooling
Model | RLT-50h | RLT-50 | RLT-50L | |
Wavelength | 10.2µm | 10.6µm | ||
Laser power | 40W | 50W | ||
Power stability | ≤±5% | |||
Beam quality M² | <1.2 | |||
Beam Diameter（1/e²) | 2.0±0.2mm | |||
Beam divergence angle(full angle) | <7.5mrad | |||
Polarization | Horizontal linear polarization,>100:1 | |||
Modulation frequency | 0-25kHz | |||
Duty cycle range | 0-100% | |||
Electrical input | DC48V/12A | |||
Cooling method | Air-cooling | Water-cooling | ||
Size | 435mm×92.5mm×145mm | 477mm×92.5mm×92mm | ||
Weight | 7.6kg | 7.0kg | ||
Working shell temperature | <60℃(140 °F) | <50℃(122 °F) | ||
Ambient Temperature | <15~40℃(59~104 °F) | |||
Humidity | Non-condensing | |||
Ambient temperature | -10~60℃(14~140 °F) | |||
1. Product Introduction: 1) The laser power was measured at a laser temperature of 25 ℃, and for every 1 ℃ increase above 25 ℃, the output power decreased by about 1%; 2) Power stability calculation formula: Stability=± (Pmax Pmin)/(2 × Pmax) Stability testing conditions: Under normal operating conditions, preheat the machine for 10 minutes and maintain a constant control duty cycle. | ||||
