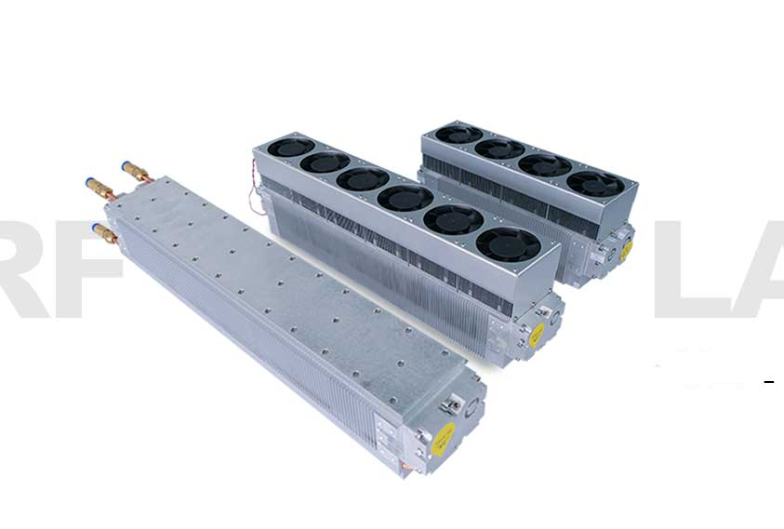

RLT-40 Series CO2 RF laser

The RLT-40 series CO2 RF laser is highly suitable for industrial continuous operation; Good output beam quality and high output power; Fully enclosed metalized design, small size, maintenance free, long lifespan, stable and reliable operation.

Stable power and excellent beam quality; Integrated design, easy to integrate; High photoelectric conversion efficiency, fast response.

Order online

RLT-40 series CO2 RF laser

1.Brief introduction:

Stable power and excellent beam quality; Integrated design, easy to integrate; High photoelectric conversion efficiency, fast response.

2. Application industry:

Marking of wooden products; Paper carving; Plastic bottle labeling; PCB coding

3. Technical specification

RLT-40 series - air-cooled/water-cooled

Model	RLT-40N		RLT-40A	RLT-40L	RLT-45A
Wavelength	10.6µm
Laser power	40W				45W
Power stability	≤±5%
Beam quality M²	<1.2
Beam Diameter（1/e²)	2.0±0.2mm
Beam divergence angle(full angle)	<7.5mrad
Polarization	Horizontal linear polarization,>100:1
Modulation frequency	0-25kHz
Duty cycle range	0-100%
Electrical input	DC48V/12A
Cooling method	No Air-cooling	Air-cooling		Water-cooling	Air-cooling
Size	357mm×92mm×83mm	357mm×92.5mm×145mm		397mm×92.5mm×93mm	357mm×92.5mm×145mm
Weight	4.8kg	6.2kg		5.8kg	6.2kg
Working shell temperature	<60℃(140 °F)			<50℃(122 °F)	<60℃(140 °F)
Ambient Temperature	<15~40℃(59~104 °F)
Humidity	非Non-condensing
Ambient temperature	-10~60℃(14~140 °F)
1) The laser power was measured at a laser temperature of 25 ℃, and for every 1 ℃ increase above 25 ℃, the output power decreased by about 1%; 2) Power stability calculation formula: Stability=± (Pmax Pmin)/(2 × Pmax) Stability testing conditions: Under normal operating conditions, preheat the machine for 10 minutes and maintain a constant control duty cycle.
