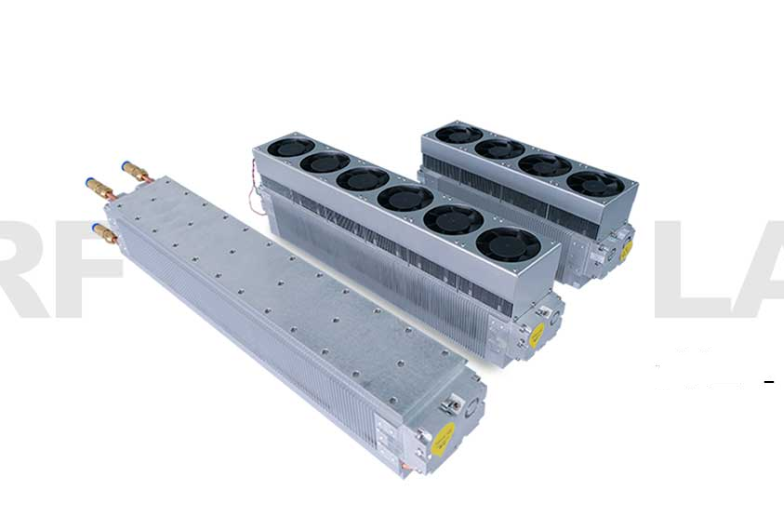

RLT-30 series CO2 RF laser

The RLT-30 series CO2 RF laser is a gas laser based on RF excitation technology. The working medium is a mixture of CO2, N2, and He gas, which is excited by an RF electric field to produce stimulated radiation and output laser. Its core advantages lie in high beam quality, strong stability, and long-life design, suitable for precision machining, scientific research experiments, and medical fields.

High beam quality and stability; Compact modular design; Wide material adaptability.

Order online

RLT-30 series CO2 RF laser

1. Brief introduction:

High beam quality and stability; Compact modular design; Wide material adaptability.

2. Application industry:

Ceramic sheet cutting; Bamboo and wood handicrafts; Medical and beauty; Research and Testing

3. Technical parameters:

RLT-30 series - air-cooled/water-cooled

Model	RLT-30iL	RLT-30i	RLT-30h		RLT-30A	RLT-35A		RLT-35m
Wavelength	9.3µm		10.2µm		10.6µm
Laser power	25W		30W				35W		38W
Power stability	≤±5%
Beam quality M²	<1.2
Beam Diameter（1/e²)	2.0±0.2mm
Beam divergence angle(full angle)	<7.5mrad
Polarization	Horizontal linear polarization,>100:1
Modulation frequency	0-25kHz
Duty cycle range	0-100%
Electrical input	DC48V/12A
Cooling method	水冷Water-cooling			风冷Air-cooling
Size	397mm×92.5mm×93mm			357mm×92.5mm×145mm
Weight	6.2kg
Working shell temperature	<60℃(140 °F)
Ambient Temperature	<15~40℃(59~104 °F)
Humidity	Non-condensing
Ambient temperature	-10~60℃(14~140 °F)
1) The laser power was measured at a laser temperature of 25 ℃, and for every 1 ℃ increase above 25 ℃, the output power decreased by about 1%; 2) Power stability calculation formula: Stability=± (Pmax Pmin)/(2 × Pmax) Stability testing conditions: Under normal operating conditions, preheat the machine for 10 minutes and maintain a constant control duty cycle.
